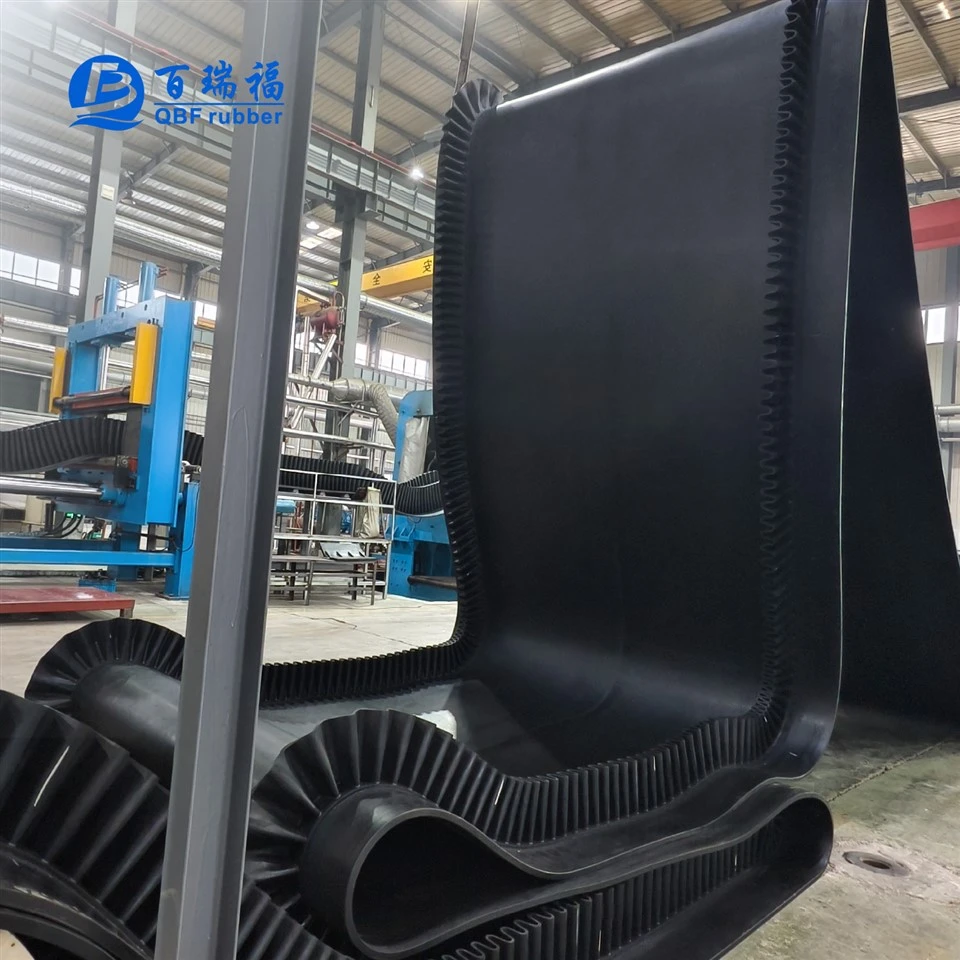

Endless Conveyor Belt
● Belt Width: ≤2500mm
● Sidewall Height: ≤300mm, customizable
● Bonding Method: Hot vulcanization
● Conveying Angle: 30°~90°
● Application: High-speed and precision conveying applications
Qingdao Best Friend Rubber & Plastic Co., Ltd. is one of the most reliable manufacturers and suppliers of endless conveyor belt in China, also supports customized service. If you're going to buy high quality endless conveyor belt made in China, welcome to get more information from our factory.
The Endless Conveyor Belt is a closed conveyor belt made by winding a single skeleton and directly vulcanizing it during manufacturing. Because it has no joints, it features stable operation, low elongation, and uniform tension, making it widely used in high-speed and precision conveying applications.
Characteristic Overview
|
Product Name |
Endless Conveyor Belt |
|
Length |
5-30m |
|
Belt Width |
≤2500mm |
|
Sidewall Height |
≤300mm, customizable |
|
Bonding Method |
Hot vulcanization |
|
Rubber Properties |
Heat resistant, high temperature resistant, cold resistant, acid and alkali resistant, oil resistant, wear resistant, flame retardant, etc. |
|
Conveying Angle |
With partitions, it can achieve large inclination angles of 30°~90°. |
|
Certificate |
ISO9001 |
Design Features of Endless Conveyor Belt
1. Seamless Design
Utilizing integrated ring molding technology, the belt core features a seamless design, eliminating joint loss and ensuring stable operation even at low tension rates.
2. Wear Resistance
Eliminates the risk of damage from traditional conveyor belt joints. The cover rubber also uses a high-strength rubber formula, extending service life by 30%-50%.
3. Spill Prevention
The base belt and skirts are integrally molded, preventing material accumulation and leakage, ensuring 100% cleanliness and hygiene during transport.
4. Easy Installation
The seamless ring structure can be directly fitted into rollers, eliminating the need for on-site splicing and saving over 50% of installation time and costs.
Why Choose Us?
Production Equipment
We have 10 semi-finished product production lines with a daily output of approximately 450-800 meters.
Industry Standards
A drafting unit for conveyor belt industry standards. A leading manufacturer of sidewall conveyor belts.
Initial Testing
Equipped with advanced testing equipment, capable of conducting various physical property tests such as oxidation and heat resistance to ensure product quality.
FAQ
Q: What properties of the cover rubber can be customized?
A: Heat resistance, high temperature resistance, cold resistance, acid and alkali resistance, oil resistance, flame retardancy, and various other properties.
Q: Does the conveyor belt undergo fatigue testing before leaving the factory?
A: It has undergone a 5 million revolution fatigue life test.
Q: What is the bonding method?
A: Hot vulcanization bonding method.
Q: What is the service life?
A: Under normal use and maintenance conditions, the service life can reach more than 5 years.
